Frame groups

A frame group is a grouping mechanism for animation frames to make it easier to separate sequences.

Frame group example

To create a frame group, left click on a frame and drag the mouse across the timeline. Release the mouse on the last frame of the group and then click the Create Group button. Double click on the frame group header to enter a name for the group and select a color for the group tab.

Icon Description
Create frame group Create a group for the selected set of frames.
Set frame duration Set the duration of one or more frames

To set the duration for one or more frames, select the frames and then click the Set Duration button. Enter the number of milliseconds between frames (1000 milliseconds in a second) and click OK.

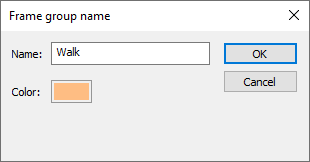

Frame group properties dialog

Note you can only create a group for frames where the first and last frame are not already in a group.
